The current system has two custom PCB assemblies and one user-installed output module. The backplane supplies shared infrastructure; each carrier owns its local protection, measurement, control, and output module.

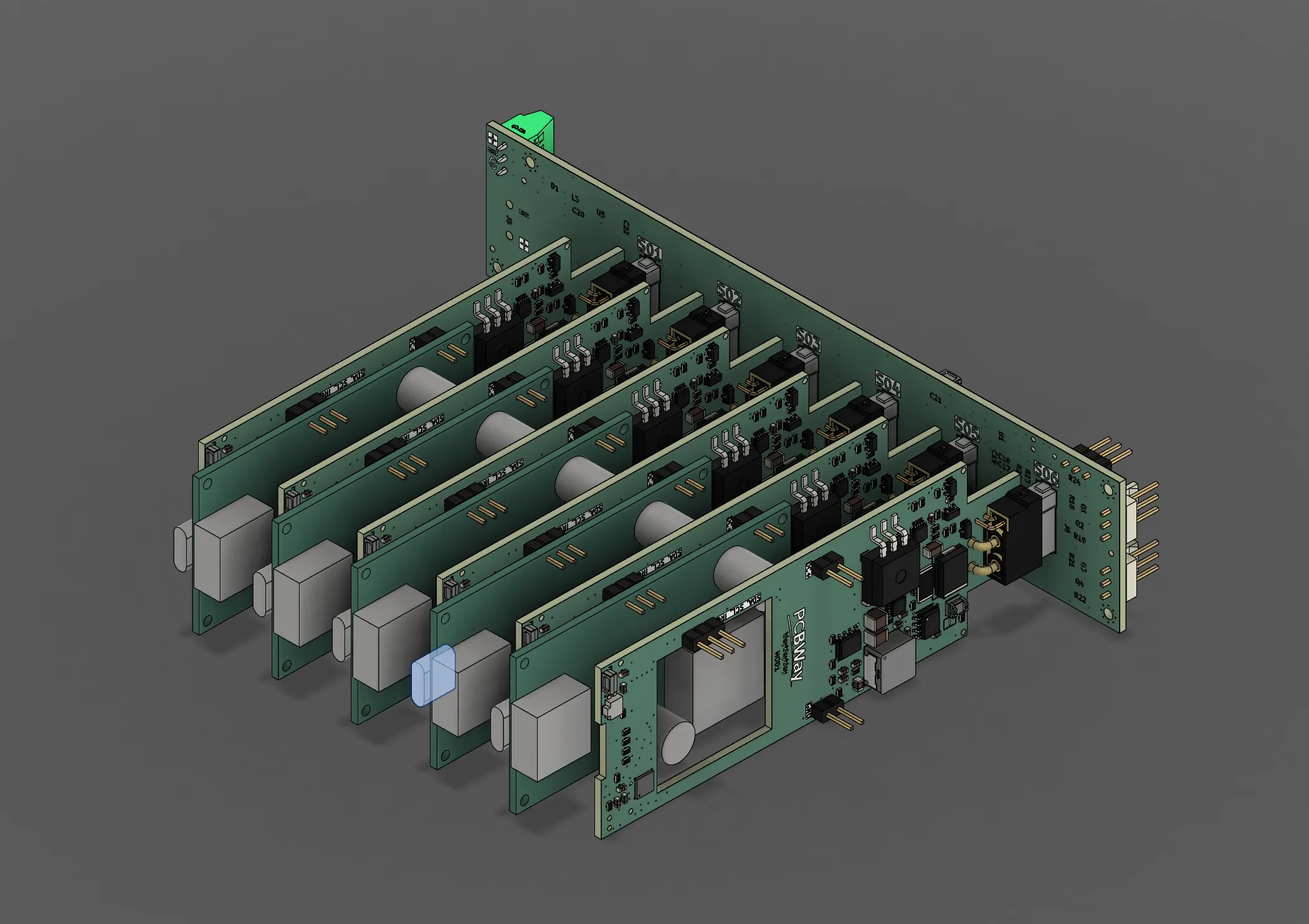

Early hardware-assembly concept showing the backplane and installed modules

Initial render of the hardware assembly showing the backplane and installed modules.

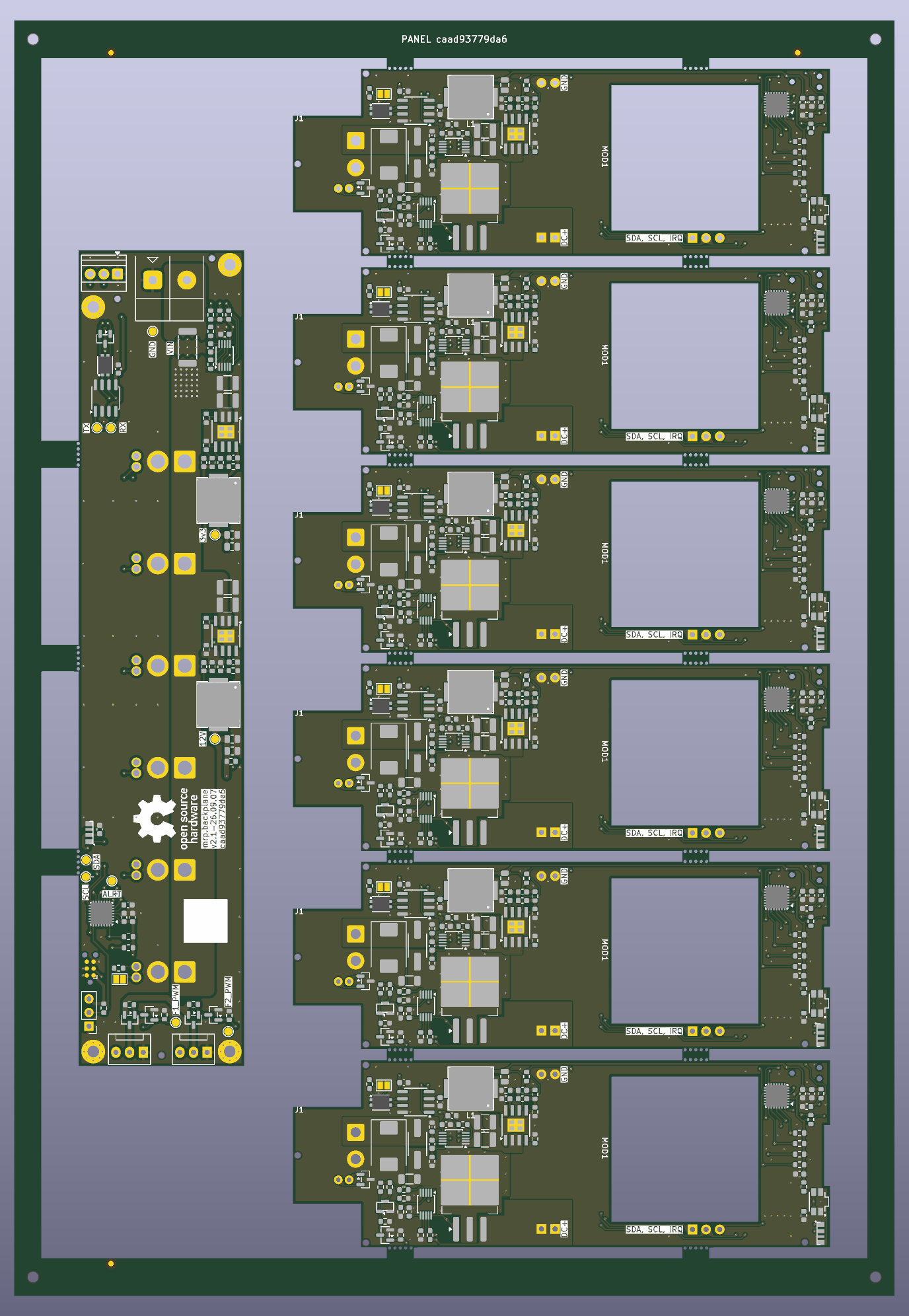

Six-carrier, one-backplane fabrication panel

Fabrication-panel preview, not an assembled-system model. See render provenance.
